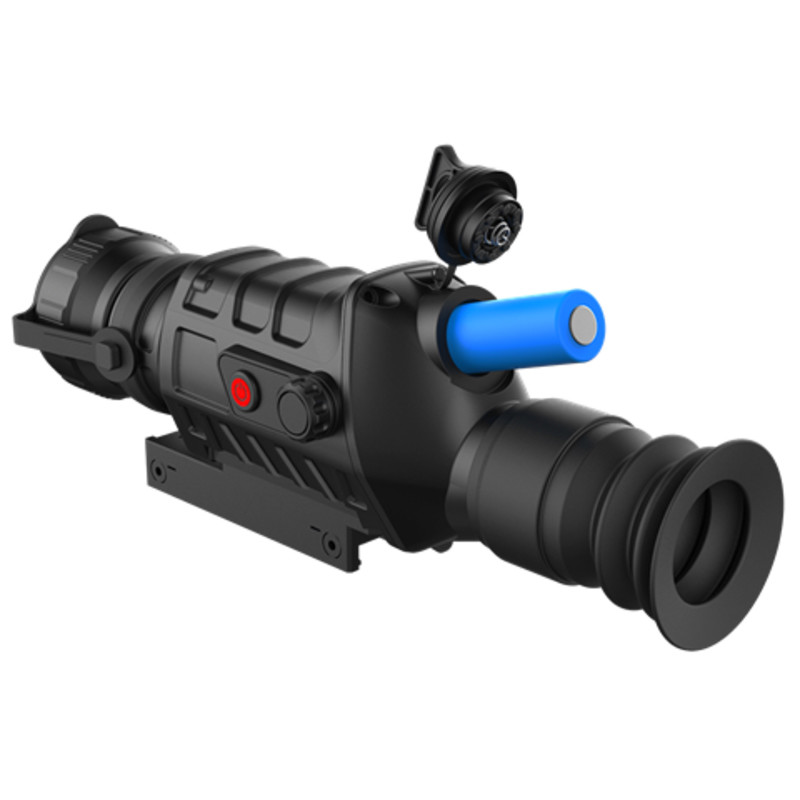

The Guide TS435 is a thermal imaging riflescope for demanding shooters who want to shoot with extreme precision over medium distances. The thermal riflescope has a 2x to 9x magnification and can pick up heat sources up to 950m. The 50hz refresh rate makes it easy to track fast moving objects. The state-of-the-art detector in combination with an OLED display results in razor-sharp images. The TS435 comes with a separate Picatinny/Weaver mounting.

Optics and display
The thermal riflescope is equipped with a 400x300@17μ 'TEC metal encapsulated' infrared detector. The environment is displayed on an amazing 1024x768 OLED display. The 50hz refresh rate provides real-time images. The TS435 features a 35mm lens with a 2x optical magnification. You can enlarge it up to 9x by using the digital zoom (Picture-in-Picture also available). You can focus on the surroundings as you like using the focus ring.

Focusing and zero setting
In order to follow targets easily and shoot with extreme precision, you can use 10 different crosshairs (see images on the right). You can set the colour of the reticle in black or white. The reticle can also be switched off. The 'zero' can easily be set and saved from the main menu. In total you can save 6 different zero settings.

Observation modes
You can select seven thermal colour pallets: White Hot, Black Hot, Red Hot 1/2/3, Green Hot and Blue Hot. Additionally, the Hot Track function allows you to "mark" the hottest object on the screen with an indicator. This makes finding and tracking targets easier than ever. You can also adjust the contrast of the environment to your own preference.

Stadiametric rangefinder
The rifle scope is equipped with a stadiametric rangefinder, which allows you to calculate the distance to an animal of known size (e.g. hare, boar or deer). This function can be used for objects with a size of 1.8m / 0.5m / 0.25m.

Reliability properties
The thermal rifle scope is resistant to recoil of 500G/1ms. The TS435 is also IP67 certified (water and dustproof and therefore suitable for all types of weather). You can power the device with one 18650 battery, which you can quickly and easily insert into the device. This allows you to use the rifle scope for up to 5 hours. A rechargeable 18650 battery and charger are included as standard.

Application Guide TS435
This thermal riflescope is ideal for hunting, shooting or airsoft. The Guide TS435 is mainly used by demanding users who want to shoot at medium distances. With the help of a video cable (included) you can display the images in real-time on a monitor. At the optional accessories you will find some waterproof, fully-certified transport cases and firearm cases.

Including:

Specifications:

• Picture-in-picture: On/off, the position is adjustable
• Hotspot tracking: Yes
• Compensation Modes: Auto Compensation / Shutter Compensation / Scene Compensation
• Calibration: 25m/50m/100m
• Stadiametric rangefinder: 1.8m/0.5m/0.25m
• Gun Types Selection: 6 Types
• Battery Type: Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device
• Battery Operating Time: ≥3H (Standard low temp battery, Observation status only), ≥5H (Panasonic 3400mah standard 18650 battery, Observation status only)
• Video Interface: Lemo
• Operating Temperature: -40ºC-50ºC
• Encapsulation: IP67
• Weight (excl battery): 660g
• Dimensions: 230mm×90mm×75mm
• Detection Range: Human (1.8m×0.5m) - 1000m, Vehicle (2.3m×2.3m) - 2400m
• Recognition Range: Human (1.8m×0.5m) - 500m, Vehicle (2.3m×2.3m) - 1000m
